Ecolite LiFePO4 Lithium Battery 48V20Ah

Name: Ecolite LiFePO4 Lithium Battery 48V20Ah
Brand: Ecolite/OEM/ODM
Price: 1 USD

China Ecolite LiFePO4 Lithium Battery 48V20Ah wholesale

Brand Name : Ecolite/OEM/ODM

Place of Origin : China

MOQ : 5000

Price : Inquiry

Payment Terms : L/C, T/T

Supply Ability : 5000Units per month

Delivery Time : 1-2 months

Packaging Details : Carton Pallet Container

Nominal Voltage : 48V

Rated Capacity : 20Ah

Energy : 960Wh

Resistance : ≤30mΩ

Effciency : ≥0.98

Cycle Life : >2000cycles @1C,80% DOD

Self Discharge : <5% per Month

Max. Modules in Series/Parallel : 15S/3P

Weight : 13kg

Terminal Type : M4

Battery Housing : SPCC

Housing Protection : IP30

Charge Voltage : 53.25~54.75V

Charge Method : CC-CV

Contact Now

Ecolite LiFePO4 Lithium Battery 48V20Ah

FEATURES

Lithium lron Phosphate(LiFePO4)

The Safest Lithium Technology.

Integrated Battery Management System(BMS)

Support multiple parallel connections.

PERFORMANCE

Long Cycle Life>2000cycles@80%DOD.

High Density,High Discharge Current,High Tempera-ture Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

Specifications

Electrical Parameters		Mechanical Parameters
Nominal Voltage	48V	Dimension(WxDxH)	442x245x88mm
Rated Capacity	20Ah	Dimension(WxDxH)	17.4 x 9.64x3.464
Energy	960Wh	Weight	13kg
Resistance	≤30mΩ	Terminal Type	M4
Effciency	≥0.98	Battery Housing	SPCC
Cycle Life	>2000cycles @1C,80% DOD	Housing Protection	IP30
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	15S/3P	Communication	RS485/RS232

Discharge Parameters		Charge Parameters
Continuous Discharge Current	20A	Charge Method	CC-CV
Pulse Discharge Current	25A(<10S)	Charge Voltage	53.25-54.75V
Recommended Volt. Disconnect	37.5V	Recommended Float Voltage	50.6~51.75V
BMS Discharge Cut-off Voltage	37.5V	Recommended Charge Current	10A
Reconnect Voltage	40.5V	Maximum Charge Curent	20A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	54.75V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		60℃

Product Tags:

48V20Ah LiFePO4 Lithium Battery

Ecolite LiFePO4 Lithium Battery

Ecolite LiFePO4 Battery

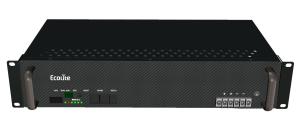

Ecolite LiFePO4 Lithium Battery 48V20Ah Images
